Detailed explanation of Value Types and Reference Types

1.      What are the categories of data types in C#?

• ·         Data types are categorized into 2 types in C#.  They are value types and reference types.

2.       What are the differences between values types and reference types? Explain with example where ever necessary.

·         Value types are stored in Stack and reference types are stored in Heap.

Lets create an example class to explain various things in detailed.

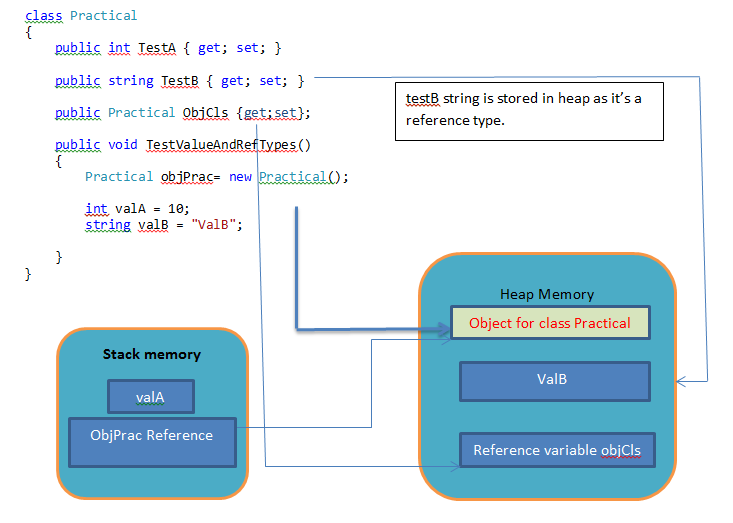

Memory allocation for value types and reference Types

Below example is to explain what’s object and what is the reference.

Class obj = new Class();

new Class() // constructor call to create an object which stays in heap.

Class obj // This is declaration of reference variable which can hold the address of Class.

However for our comfort we call obj in the above code as object instead of reference.

Comments are added for method TestValueAndRefTypes in class Practical to explain what happens in memory after execution of each line of code.

 public void TestValueAndRefTypes()

 {

            Practical objPrac= new Practical();





  Let’s see what happens in memory after above line of code runs.

·         When the Above code runs Object is created for Practical class in Heap and it’s address is assigned to the reference variable ObjPrac.

·         As ObjPrac is local to the method. This pointer stays in Stack and pointing to the Object created in Heap.

·         ObjPrac will hold memory for below 3 variables in the Heap.

              TestA, TestB and ObjectCls which are its properties.

·         Even though TestA is int it resides in Heap as it’s actually under object. TestB which is string is also stored in Heap. ObjectCls object is created in Heap as expected and it’s reference also stays in Heap.

            int valA = 10; // valA variable gets placed in Stack memory.

            string valB = "ValB"; // valB gets placed in Heap.

        }

Now let’s see how the copying happens in values types and reference types

with examples

Copying reference variables

// Value Types

int a = 1;

int b = a; // Value of a is  copied to be.

b = 2;   // As a and b be are independent changing b should not impact a value.



Output:



Output of When one value type is copied to another

Copying of Reference types

 Console.WriteLine("\n Test Copying of Class Object");

 TestValueAndRef objTestFirst = new TestValueAndRef();

 objTestFirst.XXX = 10;

 objTestFirst.YYY = "Original";

 TestValueAndRef ObjTestCopy = objTestFirst;

 // Address of objTestFirst is copied to ObjTestCopy

// Now modify the values of Copy

ObjTestCopy.XXX = 20;

ObjTestCopy.YYY = "Modified";

Console.WriteLine("objTestFirst.XXX :{0} \n,objTestFirst.YYY : {1}", objTestFirst.XXX, objTestFirst.YYY);

Console.WriteLine("End : Test Copying of Class Object");

Output:



When Reference types variables are copied

Copying of String variable

String acts like value type though it’s a reference type.

Example for Copying String variables

string RefB = "RefB";

·         One object is created in heap for RefB.

string RefC = RefB;

·         If String acts like ref type address of RefB should be copied to RefC

And if Recf Changes, RefB should change to maintain the same value as RefC

But that doesn't happen. Only value is copied to RefC and Change to RefC doesn't

impact RefB.

RefC = "RefC";

  Console.WriteLine("RefC ={0}", RefC);

  Console.WriteLine("RefB ={0}", RefB);



Output.



When one string copied to another

3.      What do you mean by string is immutable?

·         String is immutable means once variable is assigned with some value, it cannot be changed.

              Example: String is Immutable

       string RefB = "RefB"; // One object is created in heap for RefB

       RefB = "New" + RefB;



             Instead of changing the value in the existing Object,new Object is created in heap for string,

             Every time you try to assign/change a the value of it.

             Though it  can't be seen here that’s how things happen internally.



4.      What is StringBuilder ? What is necessity for StringBuilder in C#?

·         As string is immutable as string value changes in the program more number of objects are created in the memory which is memory overhead. This can be overcome with StringBuilder

which maintains only one Object and if value changes for the Object, new object will not be created. Hence StringBuilder should be alternative for String when string likely to have more changes.

              Example for StringBuilder:

           StringBuilder sbStr = new StringBuilder();

            sbStr.Append("Test1");

            sbStr.Append("Test2");

            sbStr.Append("Test3");

            Console.WriteLine("String Builder Value:{0}",sbStr);

Output:





StringBuilder Example

Copying of  StringBuilder

String Builder is a reference type and it behaves as expected unlike string which acts like value type.

StringBuilder sbStr = new StringBuilder();

sbStr.Append("Test1");

sbStr.Append("Test2");

sbStr.Append("Test3");



// Copying of StringBuilder

StringBuilder newSBStr = sbStr;

newSBStr.Append("New Value added");

Output:

Output :Copying One String Builder to Another

5.      What is Boxing and Unboxing?

·         Converting Value types to reference type is called Boxing and converting the boxed reference value to value type is called Unboxing.

6.      When is the memory of value type and reference types released?

·         As value types are stored in Stack and actually releases the memory one variable gets out of scope.

·         For example a variable declared inside a method loses it’s memory which is stack immediately after exaction of that method.But references types which are stored in the heap doesn’t release memory even after being out of scope. The memory of these objects which are heap will be flushed or released by garbage collector which runs automatically at certain intervals to claim the unused objects memory.
